TWIN-LENS MULTI DOWNLIGHT
Product specification

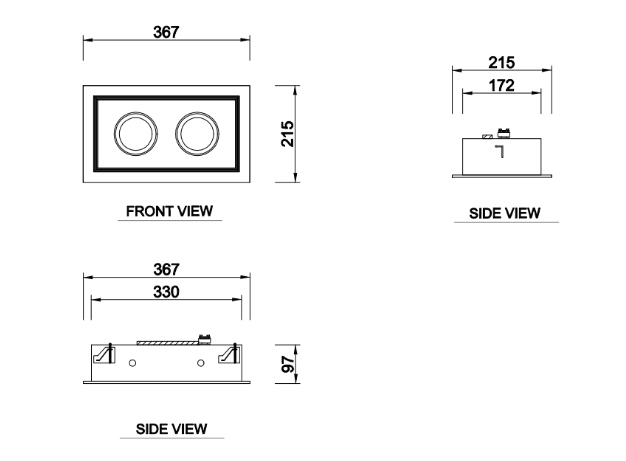

※ Please you should be checked a cut size before you construct.
|
PCB FOR LED LIGHT (DESIGN PATENT REFISTRATION NUMBER 30-0937281)
LED LIGHT (PATENT REFISTRATION NUMBER 10-1936830)
|
Please drag the ticket left and right.
| MODEL NO. |
POWER
CONSUMPTION(W) |
Luminous
Flux(lm) |
LUMINOUS
EFFICIENCY(lm/W) |
LIGHT COLOR(K) |
CRI(Ra) |
OUTPUT
VOLTAGE(V) |
REMARKS |
| ESL-40MTLK57 |
40 |
3800 |
95 |
5700 |
80 |
45 |
WHITE FRAME |
| ESL-40MTLK40 |
40 |
3800 |
95 |
4000 |
80 |
45 |
WHITE FRAME |
| ESL-40MTLK30 |
40 |
3800 |
95 |
3000 |
80 |
45 |
WHITE FRAME |
